Product Name : Double-side tapes for printing
Item# : 162321-705
Model : 162321-705
Last update : 2015.05.20
Manufacturer :
View Big Picture






@flexo printing tape


Double – Side Tapes


For color printing



Model : 6505 / 5505



Features :

※ Adhesive : Rubber (Solvent based) adhesive coated on both sides.

※ Carrier : Transparent PVC Film.

※ Liner : 5505 – 110g / m2 PE coated Draft paper liner, natural color.

6505 – Crepe PVC film liner, brown color.

Semi removable adhesive system for temporary

※ Bonding and repositioning without leaving residue after removal.

※ During mounting process.



Specifications :

Thickness : 0.1 / 0.2 /0.3 MM

Width : 310 mm and any width

Length : 4.5 / 10 m and any length



Technical data :

※ hickness tolerance : +-0.005 mm

   Tack : J Dow No.Close side 10 Open Side 14

※ Peel adhesion : PSTC-3 1.0 kg/25 mm 1.2kg / 25 mm

※ Adhesion Growth : 10% (peel adhesion after

Pressing of 80g/cm2 for 72 hours)

Shear strength : PSTC-7 over 24 hrs with 1 kg

※ Loading on 25 mm x 25 mm, both sides

Service Temperature : 10-60 degree C



Applications :

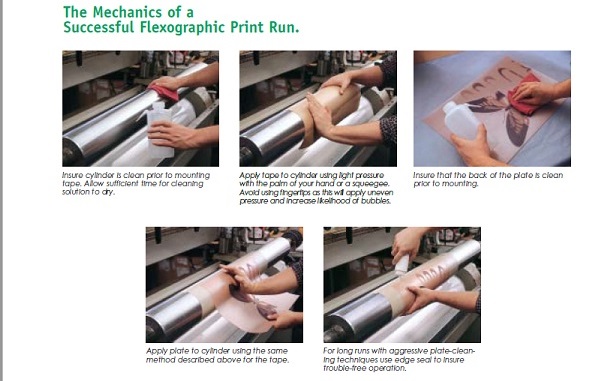

※ Temporary mounting of rubber or photopolymer plates to the printing cylinder or sleeves in flexographic and

letterpress printing

※ Specially designed for mounting photopolymer plates in printing of business forms, labels, books and newspapers

printing. Etc.







Double-side tapes for printing

+zoom

@flexo Tapes

features 100420


No.

Thickness

Carrier

Color

Release Liner

(mm)

(inch)

@3505

0.10

0.004

UPVC

Clear

PE/Kraft Paper

@3508

0.20

0.008

UPVC

Clear

PE/Kraft Paper

@3512

0.30

0.012

UPVC

Clear

PE/Kraft Paper

@6505

0.10

0.005

UPVC

Clear

Crepe PVC

Brown

@6508

0.20

0.008

UPVC

Clear

Crepe PVC

White

@6512

0.30

0.012

UPVC

Clear

Crepe PVC

Green

@2248

0.18

0.007

Densified Paper

White

Glassine Paper

@4615

0.38

0.015

Cotton Cloth

Beige

Glassine Paper

@6115

0.38

0.015

Hard compressible foam

Off-White

White Embossed

PP Liner

@6120

0.50

0.020

Hard compressible foam

Off-White

White Embossed

PP Liner

@6115

0.38

0.015

Hard compressible

+ Film

reinforcement

Off-White

PE / Kraft Paper

@6120

0.50

0.020

Hard compressible

+ Film

reinforcement

Off-White

PE / Kraft Paper



@flexo double-side tape for printing

Product No. 6505

Good for Letterpress / Flexo / Vanish and all kinds of printing


Features:

1. Adhesive : Acrylic(Solvent base) adhesive coated on both sides.

2. Carrier : Transparent PVC Film.

3. Liner : Crepe PVC film liner, brown color

4. Semi removable adhesive system for temporary bonding and repositioning without leaving residue after removal.

5. With crepe PVC film liner to avoid air trap during mounting process.


Technical data:


1. Thickness : 0.105 +- 0.005 mm

Close side Open Side

2. Tack : J. Dow No. 12 12

3. Peel Adhesion : PSTC-3 1.0 +- 0.1 kg / 25 mm 1.2 +- 0.1 kg / 25 mm

4. Adhesion Growth : <10 % (Peel adhesion after pressing of 80g /cm 2 for 72 hours)

5. Shear Strength : PSTC-7 Over 24 hrs with 1 kg loading on 25 mm x 25 mm , both sides

6. Service Temperature : 10 ~ 80 degree C


Applications:


1. Temporary mounting of rubber or photopolymer plates to both flat-bed and rotary cylinder for flexo and letterpress printing.

2. Specially designed for mounting photopolymer plates in printing of business forms, labels, books and newspapers printing, etc.


@flexo double-side tape for plate making

Product No. 0497

Good for Letterpress / Flexo washout mounting when plate making.


Features:



1. Adhesive : Acrylic ( solvent based ) adhesive coated on both sides.

2. Carrier : 1/2 mil ( 12 _ ) transparent PET film.

3. Liner : 110g /m 2 PE coated bleached Kraft paper liner.

4. Enhanced carrier - PET film helps clean removal.

5. Moderate adhesion to most substrates.

6. High tack adhesive system that provides quick bonding result.



Technical data:



1Thickness : 0.09 _ 0.005 mm

2. Tack : J. Dow No. 20

3. Peel Adhesion : PSTC-3 1.2 kg / 25 mm

4. Shear Strength : PSTC-7 Over 24 hrs with 1 kg loading on 25mm x 25mm

5. Service Temperature: -20 ____ __ _ __

6. PH Value : _ 7.0



Applications:



1. Flexo and letterpress mounting on washout board when plate making.

2. Mounting of nameplates, trophies and signs.

3. Bonding of sporting goods - tennis, shoes, leather, etc.

4. Stationery market.
