Product Name : 2436/3040/4050/4260
Item# : 17322-744
Model : 17322-744
Last update : 2015.05.18
Manufacturer :
View Big Picture







Plate making machine for photopolymer plates


@flexo Group is a professional technic and service support team in both film and photopolymer plate making machinery for letterpress, vanishing, stamp and flexographic printing industrios since 1974.

@flexo Group has produced 3000 units photopolymer plate making machine all over the world keep on research

and developing new technology continuously for best plate making result and easy access.













ZOOM +






ZOOM +



Special features
@flexo Photopolymer Plate making machine
for Letterpress Printing


Plates suitable: TORAY / Trelief, TOYOBO/ Printight, OHKA / Miraclon, BASF / Nyloprint etc.

For printing: Letterpress,dry offset, tag, label, computer form, tampo, pad and vanish coating etc.

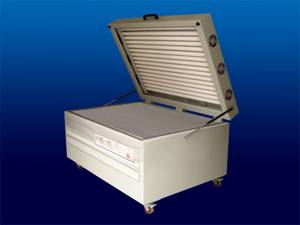

Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator

Features of Washout unit
-Flat washout unit 3 in 1 for easy access
- Special bristle good for all kind plates wash
-Automatic control of temperature precisely
- Excellent result for 200 LPI 1% reproduction


Features of Drying unit

-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection



FOR LETTERPRESS & VANISHING


Model:
                                                   @2430 for 24X30 inch(610x762 mm)

@3040 for 30x40 inch(762x1016 mm)

@4050 for 40x50 inch(1016x1270mm)

 @4260 for 42x60 inch(1016x1524mm)


INCLUDING

@2430E (Exposure)
@3040E (Exposure)
@4050E (Exposure)

@4260E (Exposure)

@2430WD (Washout & Dryer)
@3040WD (Washout & Dryer)
@4050WD (Washout & Dryer)

@4260WD (Washout & Dryer)







Special features
@flexo Photopolymer Plate making machine
for Flexo Printing



Plates suitable: DuPont, Kodak, BASF, Okaflex, AFP, JET etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.
Exposure / Washout / Drying /Treatment (Light finishing) in complete functions.

Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator

Features of Washout unit
-Very easy access design
- Special bristle good for all kind plates washout
-Suitable for Perc+NBA and Green chemicals
- Excellent result for 175 LPI 1% reproduction

Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection

Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models







Features of Exposure unit

-Instant light up Philips high intensity lamps

- Unique digital timers for back/main exposure

-Excellent lamps cooling / exhausting system

- Quick vacuum draw down pump with indicator

Features of Treatment unit

-Chemical free operation, simple, easy and save

- Digital timer for light finishing control

-Philips UVC high intensity lamps equipped

- With powerful air exhausting for big size models


MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@2436 ET

EXPOSING+TREATMENT

132 x 120 x 60

250KG

350KG

1.5KW

@3040 ET

EXPOSING+TREATMENT

145 x 114 x 76

300KG

450KG

2.5KW

@4050 ET

EXPOSING+TREATMENT

190 x 150 x 90

400KG

500KG

3.5KW

@4260 ET
EXPOSING+TREATMENT
205 x 165 x 95
600KG
700KG
4.5KW






Features of Washout unit

-Very easy access design - Special bristle good for all   kind plates washout

-Suitable for Perc+NBA and Green chemicals

 - Excellent result for 175 LPI 1% reproduction


Features of Drying unit

-Drying drawer with uniform heat distribution

-Temperature adjustable by a precise controller

-Unique air circulation and exhaustion design

-Over heat sensor for safety and protection



MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@2436 WD

WASHOUT+DRYING

120 x 110 x 90

400KG

500KG

2.8KW

@3040 WD

WASHOUT+DRYING

130 x 130 x 100

500KG

600KG

3KW

@4050 WD

WASHOUT+DRYING

180 x 140 x 100

600KG

700KG

4.5KW

@4260 WD
WASHOUT+DRYING
190 x 152 x 100
700KG
800KG
5KW


 Special features
@flexo Photopolymer Plate making machine
for Water Wash Flexo Plates


Plates suitable: TOYOBO / Cosmolight, etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.
Exposure + Washout + Drying +Treatment (Light finishing) in complete set


Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator

Features of Washout unit
-Normal temperature water washout
- With water circulation system
-Special arrangements of brush
- With residue filtration system


Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection

Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models



MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@2436 ET

EXPOSING+TREATMENT

132 x 120 x 60

250KG

350KG

1.5KW

@3040 ET

EXPOSING+TREATMENT

145 x 114 x 76

300KG

450KG

2.5KW

@4050 ET

EXPOSING+TREATMENT

190 x 150 x 90

400KG

500KG

3.5KW

@4260 ET
EXPOSING+TREATMENT
205 x 165 x 95
600KG
700KG
4.5KW

MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@2436 WD

WASHOUT+DRYING

120 x 110 x 90

400KG

500KG

2.8KW

@3040 WD

WASHOUT+DRYING

130 x 130 x 100

500KG

600KG

3KW

@4050 WD

WASHOUT+DRYING

180 x 140 x 100

600KG

700KG

4.5KW

@4260 WD
WASHOUT+DRYING
190 x 152 x 100
700KG
800KG
5KW







@flexo solvent recovery unit


  60 / 90 Liter Solvent recovery unit



Using new advanced design : anti explosion electric devices, automatic old solvent fill in, auto temperature control, auto interval timers, auto stop, cooling water circulating, visible old solvent / heating oil facilities. Workable for all kinds of solvent recovering good for environmental protection and reuse of resources. By negative pressure system reducing 20% boiling temperature and accelerating recovery speed with more safety.








Solvent recovery unit

60L

1100x790x1350 mm

5.6 kw

220 V



please see live demo from here:


 https://www.youtube.com/watch?v=N2rsPl5YBEA&t=3s
