Product Name : Model:A4/A3/A2
Item# : 145746-586
Model : 145746-586
Last update : 2015.05.18
Manufacturer :
View Big Picture











ZOOM +




Special features
@flexo Photopolymer Plate making machine
for Letterpress Printing

(Model : @A2SS / @A3SS / @A4)


Plates suitable: TORAY / Trelief, TOYOBO/ Printight, OHKA / Miraclon, BASF / Nyloprint etc.
For printing: Letterpress,dry offset, tag, label, computer form, tampo, pad and vanish coating etc.
Exposure + Washout + Drying 3 in one, all stainless steel made. ( Except @A4 )


Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator


Features of Washout unit
-Flat washout unit 3 in 1 for easy access
- Special bristle good for all kind plates wash
-Automatic control of temperature precisely
- Excellent result for 200 LPI 1% reproduction


Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection






FOR LETTERPRESS

Water & Alchohol Washout Plates

Plate Suitable:

Toyobo printight, Tokyo ohka miraclon, Toray torelief, Basf nyloprint etc.

For Printing:

Letterpress, dry offset tag, lable, computer form, tampo, pad printing and vanishing

Model:

@A4

@A3SS

@A2SS

Exposure + Drying + Washout , 3 in 1.

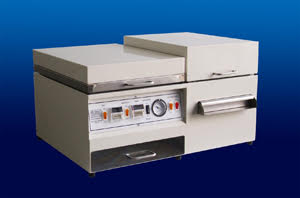

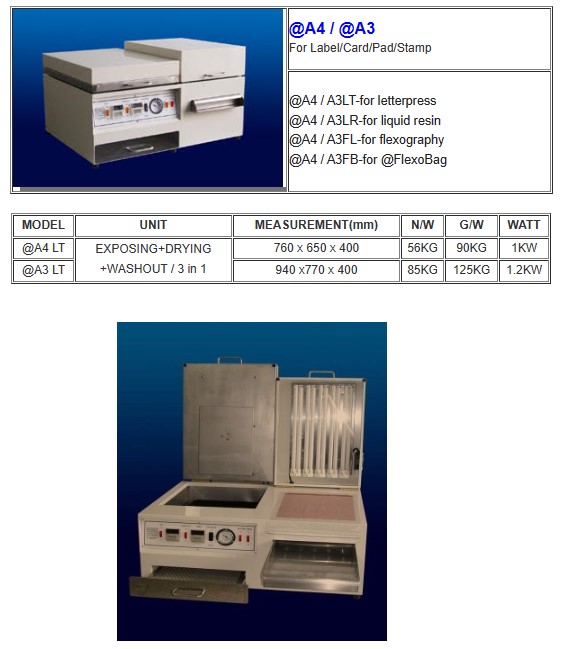

@A4 / @A3

For Label/Card/Pad/Stamp

@A4 / A3LT-for letterpress
@A4 / A3LR-for liquid resin
@A4 / A3FL-for flexography
@A4 / A3FB-for @FlexoBag



MODEL

UNIT

MEASUREMENT(mm)

N/W

G/W

WATT

@A4 LT

EXPOSING+DRYING
+WASHOUT / 3 in 1

760 x 650 x 400

56KG

90KG

1KW

@A3 LT

940 x770 x 400

85KG

125KG

1.2KW







(New modern design CAD/CNC cut body with outdoor A/C treatment / paint plus stainless steel tank all unit rust free. Warranty for ever free for first year.High intensity original Philips lamp good for 200LPI 1% dot reproduction)

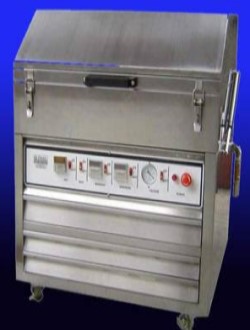

@A3SS

All stainless steel.

Exposing+drying+washout.

3 in one design very compack.

Simple operation, best plate result.


Whole system includes exposing unit, washout unit, drying unit.

MODEL

UNIT

MEASUREMENT(mm)

N/W

G/W

WATT

@A3SS

EXPOSING+DRYING
+WASHOUT

600 x600 x 900

100KG

190KG

1.0KW

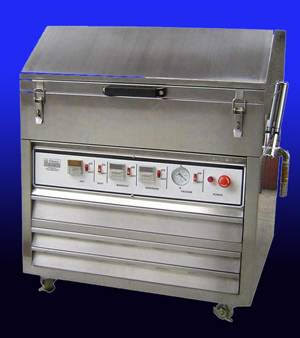

@A2SS

All stainless steel.

Exposing+drying+washout.

3 in one design very compack.

Simple operation, best plate result.





Whole system includes exposing unit, washout unit, drying unit.

MODEL

UNIT

MEASUREMENT(mm)

N/W

G/W

WATT

@A2SS

EXPOSING+DRYING
+WASHOUT

900 x 900 x 1120

150KG

250KG

1.2KW



ZOOM +

Special features
@flexo Photopolymer Plate making machine
for Flexo Printing
(Model : @A2SSF / @A3SSF / @A4SSF)

(@2430 / @3040 / @4050 / @1600 / @2001 / @2002)


Plates suitable: DuPont, Kodak, BASF, Okaflex, AFP, JET etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.
Exposure / Washout / Drying /Treatment (Light finishing) in complete functions.



Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator


Features of Washout unit
-Very easy access design
- Special bristle good for all kind plates washout
-Suitable for Perc+NBA and Green chemicals
- Excellent result for 175 LPI 1% reproduction


Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection


Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models



ZOOM +

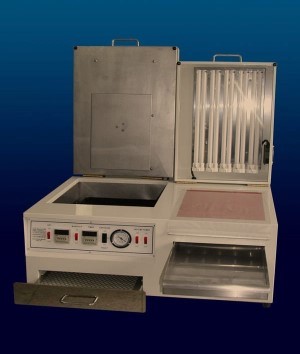

Table top model : @A4 / @A3     For Label / Card / Pad / Stamp




@A4 / @A3   For Label / Card / Pad / Stamp



@A3SSF

All stainless steel.

Exposing+drying+washout+treatment.

4 in one design very compact.

Simple operation, best plate result.



MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@A3SSF

EXPOSING+DRYING
+WASHOUT+TREATMENT

66 x 80 x 108

120KG

220KG

1.0KW



@A2SSF

All stainless steel.

Exposing+drying+washout+treatment.

4 in one design very compact.

Simple operation, best plate result.



MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@A2SSF

EXPOSING+DRYING
+WASHOUT+TREATMENT

90 x 90 x 112

200KG

300KG

1.2KW





Special features
@flexo Photopolymer Plate making machine
for Water Wash Flexo Plate

(Model : @C-A2SSF / @C-A3SSF / @C-A4SSF )

Plates suitable: TOYOBO / Cosmolight, TORAY / Toreflex etc.
For printing: Label, film, paper, corrugated board, paper carton, knitting bag, Tetra pak etc.
Exposure + Washout + Drying +Treatment (Light finishing) in complete set

Features of Exposure unit
-Instant light up Philips high intensity lamps
- Unique digital timers for back/main exposure
-Excellent lamps cooling / exhausting system
- Quick vacuum drawdown pump with indicator
Features of Washout unit
-High temperature water washout
- With water circulation system
-Special arrangements of brush
- With residue filtration system

Features of Drying unit
-Drying drawer with uniform heat distribution
- Temperature adjustable by a precise controller
-Unique air circulation and exhaustion design
- Over heat sensor for safety and protection
Features of Treatment unit
Chemical free operation, simple, easy and save
- Digital timer for light finishing control
Philips UVC high intensity lamps equipped
- With powerful air exhausting for big size models







Models:  @C-A2SSF    ( 50 x 64 cm )    For water washout flexo plates



@C-A2SSF

All stainless steel.

Exposing+drying+washout+treatment.

With water circulation & filtration system.

Simple operation, best plate result.







MODEL

UNIT

MEASUREMENT(cm)

N/W

G/W

WATT

@C-A2SSF

EXPOSING+DRYING
+WASHOUT+TREATMENT

120 x 100 x 125

235KG

335KG

2.8KW
