Product Name : Liquid photopolymer resins
Item# : 175631-143
Model : 175631-143
Last update : 2015.03.31
Manufacturer :
View Big Picture








F-90 photo resin


                                                               Liquidpolymer@matrix

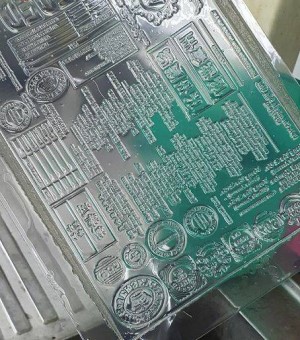

@flexogroup is announcing a new product of F-90 liquid photopolymer resin which is good for casting / molding / casting industries and rubber stamp / plate making as a plate for matrix making. Low cost, water wash, easy operation and economic equipment capital investment are the merits. By only preparing a can of F-90, you can make hardness of 90 Shore A (32 Shore D) and heat resistance of 180 degree C to make any size mold or matrix plates you like in depth of 5mm.



Solid plate for matrix is getting less will disappear soon and the cost of it is higher and higher. By using liquid photopolymer the cost is only 30% of a solid photopolymer matrix plate. In addition, no more acid etching of metal plate in order to improve our environment green of no pollution. Due to new invention and innovation, from LaserBlack now you can have negative to make a plate quickly from your laser printer also due to @stampBag patented liquid photopolymer plate making new method, now it is very easy to make a plate in plant for molding, matrix or printing.


LaserBlack enhancer can make a negative by your own HP laser printer print on tracing paper or transparent film, go through our Enhancer then after drying it you will have a very black negative on hand in your plant for all of any plate exposure. www.laserblack.net


By an innovative concept of putting resin into a bag to pre-move the bubbles to save your processing time, @stampBag is a total new solution for you to make a plate from liquid photo resin quick, easy with clean hands. The equipment is available from A4 size to A3 and any bigger size as you wish for mass production.












                     Compacted 4 in 1 design table top plate making machine for liquid photopolymer matrix plate

                       Machine including: Exposure / washout / drying / anti-tack complete functions in one unit








         Compacted 4 in 1 design table top plate making machine for liquid photopolymer matrix plate.

         Machine including: Exposure / washout / drying / anti-tack complete functions in one unit.

          Enable simple / easy / quick / convenient / clean operations for liquid matrix plate making.

          Free thickness, any size as you like to make matrix plate in your plant quick and economically.

          Don’t have to prepare lots of different thickness and size photopolymer plate in your stock.

          Using base film good for back exposure and easy cut to size not difficult as metal based plate.

          Any gauge matrix plate up to 7 mm at low cost as you like. No more expensive metal etching.

          UV curing to harden the image and washout only by water green and no pollution any more.

          Excellent heat conduction and transfer clear image. Base film heat resistance 190 degree C.

          Cost is only 1/3 of photopolymer matrix plate. Product quality is perfect enough to replace.








      How to do when MATRIX PLATE is out of market


                   YOUR SMART CHOICE INSTEAD



                  Liquid photopolymer matrix plate




                        FOR MATRIX MAKING



                     Liquidpolymer@matrix


             Heat resistance 180 degree C         Good for stamp matrix making



             Melting point 260 degree C             Logo / marking for iron casting


                              No more zinc or magnesium plate etching


                             Any gauge any size free for you to process


                           BY UV EXPOSURE AND WATER WASHOUT


                      Quick / Convenient / Environment green / Low cost





High performance most economic new recipe resins in the world

FLEXO PLATE + STAMP RESIN



                 f32-38  and  f40-50



     F32-38 FOR FLEXO PLATE MAKING

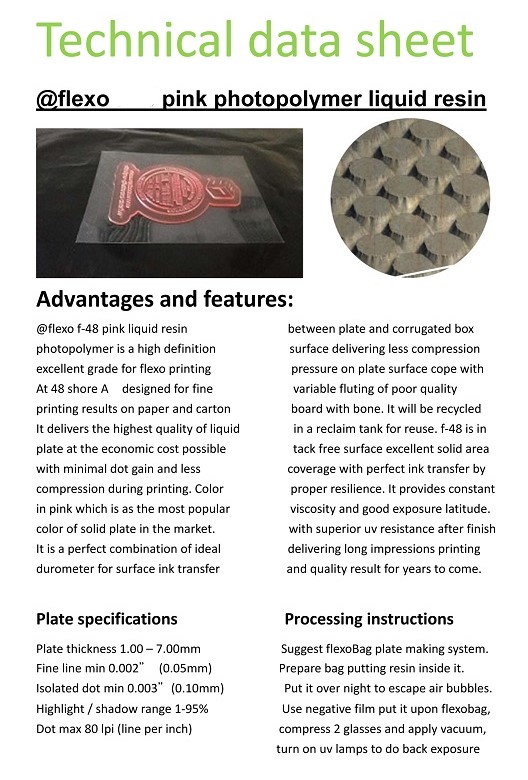

@flexo f-48 pink photopolymer resin


Advantages and features:

@flexo f-48 pink liquid resin               between plate and corrugated box

photopolymer is a high definition           surface delivering less compression

excellent grade for flexo printing            pressure on plate surface cope with

At 48 shore A  designed for fine            variable fluting of poor quality

printing results on paper and carton         board with bone. It will be recycled

It delivers the highest quality of liquid        in a reclaim tank for reuse. f-48 is in

plate at the economic cost possible          tack free surface excellent solid area

with minimal dot gain and less             coverage with perfect ink transfer by

compression during printing. Color          proper resilience. It provides constant

in pink which is as the most popular         viscosity and good exposure latitude.

color of solid plate in the market.           with superior uv resistance after finish

It is a perfect combination of ideal          delivering long impressions printing

durometer for surface ink transfer          and quality result for years to come.



Plate specifications            Processing instructions

Plate thickness 1.00 – 7.00mm            Suggest flexoBag plate making system.

Fine line min 0.002 (0.05mm)          Prepare bag putting resin inside it.

Isolated dot min 0.003(0.10mm)         Put it over night to escape air bubbles.

Highlight / shadow range 1-95%           Use negative film put it upon flexobag,

Dot max 80 lpi (line per inch)             compress 2 glasses and apply vacuum,

                                    turn on uv lamps to do back exposure

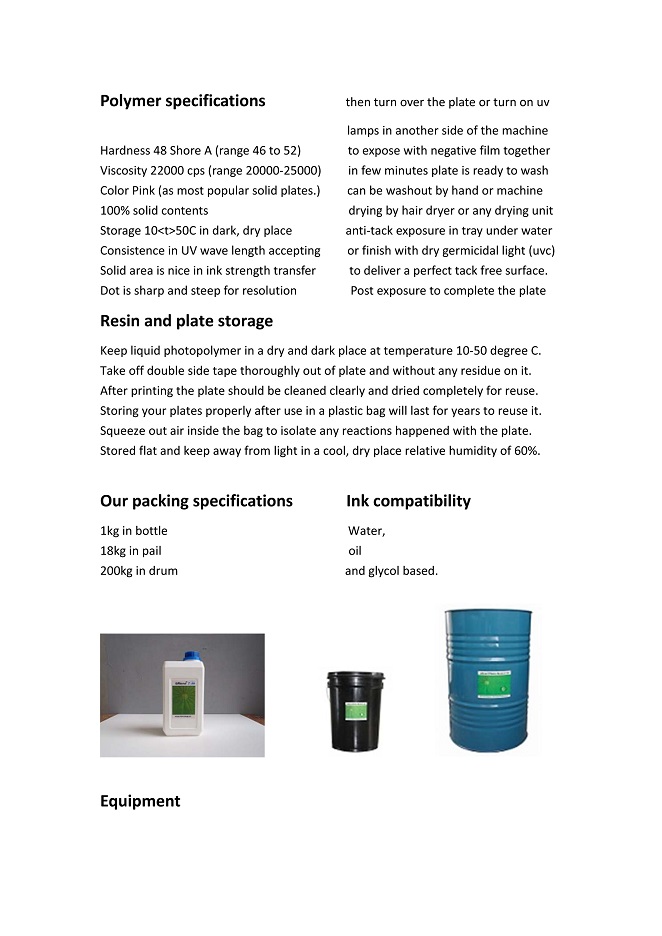

Polymer specifications         then turn over the plate or turn on uv

                                     lamps in another side of the machine

Hardness 48 Shore A (range 46 to 52)       to expose with negative film together

Viscosity 22000 cps (range 20000-25000)    in few minutes plate is ready to wash

Color Pink (as most popular solid plates.)    can be washout by hand or machine

100% solid contents                     drying by hair dryer or any drying unit

Storage 1050C in dark, dry place        anti-tack exposure in tray under water

Consistence in UV wave length accepting    or finish with dry germicidal light (uvc)

Solid area is nice in ink strength transfer     to deliver a perfect tack free surface.

Dot is sharp and steep for resolution        Post exposure to complete the plate

Resin and plate storage

Keep liquid photopolymer in a dry and dark place at temperature 10-50 degree C.

Take off double side tape thoroughly out of plate and without any residue on it.

After printing the plate should be cleaned clearly and dried completely for reuse.

Storing your plates properly after use in a plastic bag will last for years to reuse it.

Squeeze out air inside the bag to isolate any reactions happened with the plate.

Stored flat and keep away from light in a cool, dry place relative humidity of 60%.



Our packing specifications      Ink compatibility

1kg in bottle                           Water,

18kg in pail                            oil

200kg in drum                         and glycol based.





Flexo liquid photopolymer resins

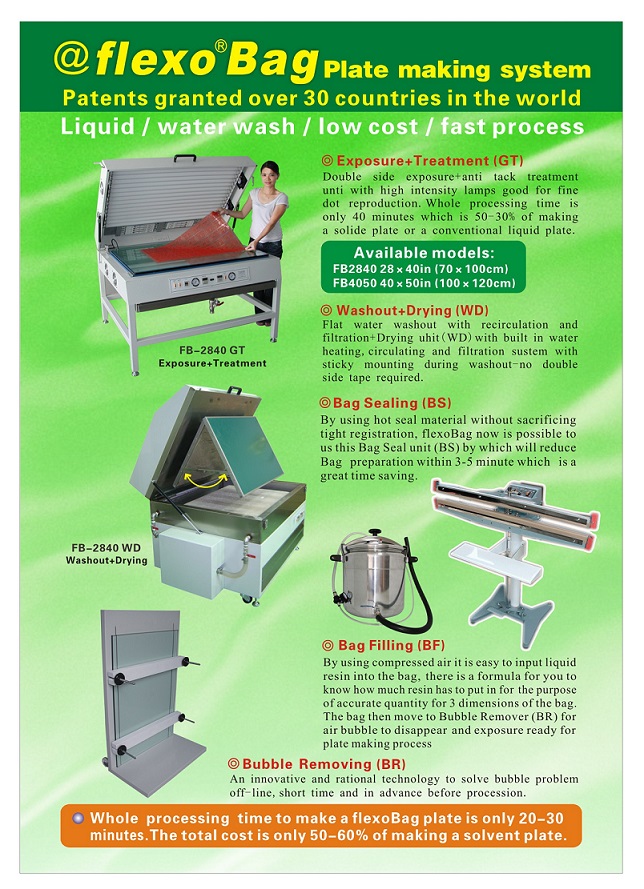

By a concept of putting resin into a bag to pre-treat the bubbles, @flexoBag is a total new solution for you to make a plate from photo resin quickly and easy. The equipment is available from A4 size to A0 as any size as you wish.

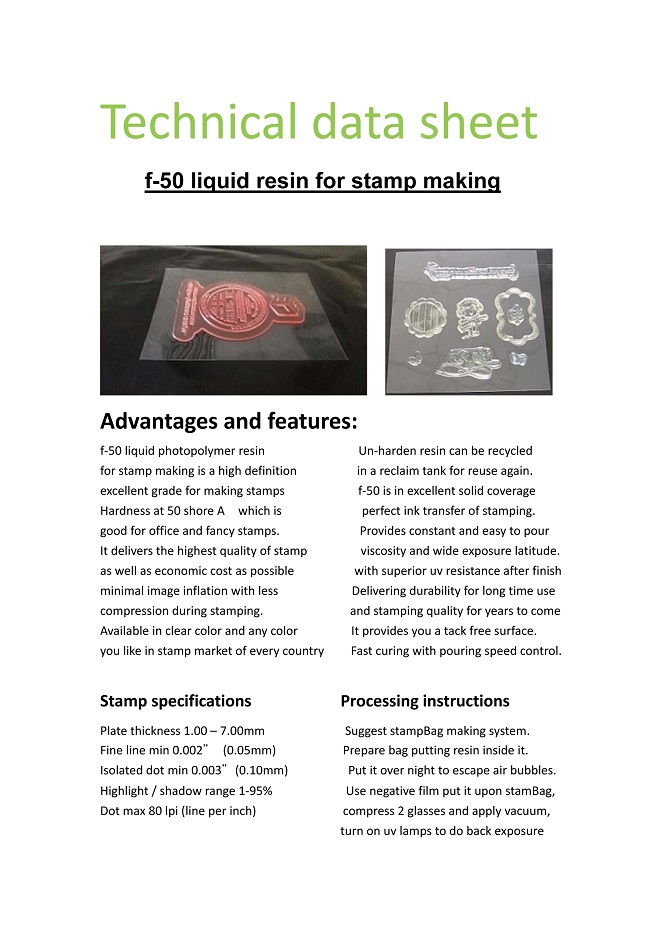

f-50  liquid photopolymer resin for stamp making



Advantages and features:

f-50 liquid photopolymer resin              Un-harden resin can be recycled

for stamp making is a high definition         in a reclaim tank for reuse again.

excellent grade for making stamps           f-50 is in excellent solid coverage

Hardness at 50 shore A  which is            perfect ink transfer of stamping.

good for office and fancy stamps.            Provides constant and easy to pour

It delivers the highest quality of stamp        viscosity and wide exposure latitude.

as well as economic cost as possible         with superior uv resistance after finish

minimal image inflation with less           Delivering durability for long time use

compression during stamping.             and stamping quality for years to come

Available in clear color and any color        It provides you a tack free surface.

you like in stamp market of every country    Fast curing with pouring speed control.



Stamp specifications          Processing instructions

Plate thickness 1.00 – 7.00mm            Suggest stampBag making system.

Fine line min 0.002 (0.05mm)          Prepare bag putting resin inside it.

Isolated dot min 0.003(0.10mm)         Put it over night to escape air bubbles.

Highlight / shadow range 1-95%           Use negative film put it upon stamBag,

Dot max 80 lpi (line per inch)             compress 2 glasses and apply vacuum,

                                    turn on uv lamps to do back exposure

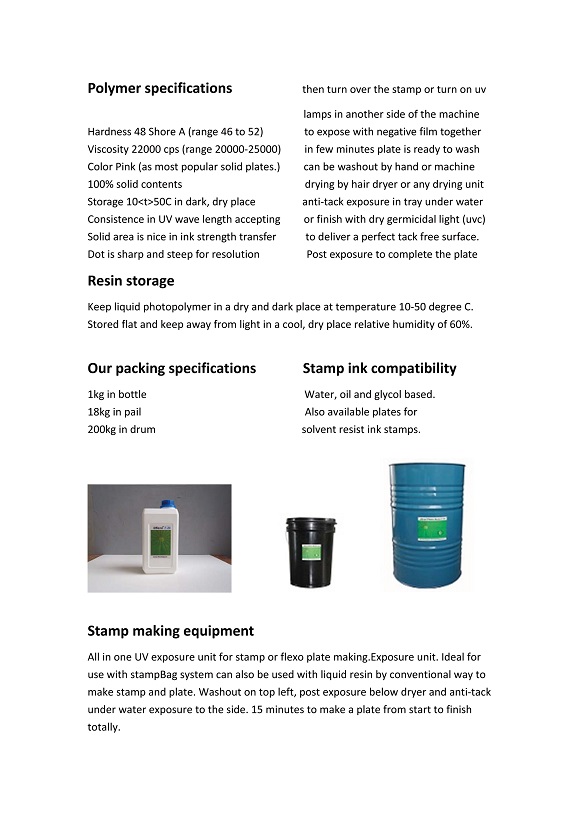

Polymer specifications         then turn over the stamp or turn on uv

                                     lamps in another side of the machine

Hardness 48 Shore A (range 46 to 52)       to expose with negative film together

Viscosity 22000 cps (range 20000-25000)    in few minutes plate is ready to wash

Color Pink (as most popular solid plates.)    can be washout by hand or machine

100% solid contents                     drying by hair dryer or any drying unit

Storage 1050C in dark, dry place        anti-tack exposure in tray under water

Consistence in UV wave length accepting    or finish with dry germicidal light (uvc)

Solid area is nice in ink strength transfer     to deliver a perfect tack free surface.

Dot is sharp and steep for resolution        Post exposure to complete the plate

Resin storage

Keep liquid photopolymer in a dry and dark place at temperature 10-50 degree C.

Stored flat and keep away from light in a cool, dry place relative humidity of 60%.



Our packing specifications      Stamp ink compatibility

1kg in bottle                           Water, oil and glycol based.

18kg in pail                            Also available plates for

200kg in drum                         solvent resist ink stamps.





Stamp making equipment

All in one UV exposure unit for stamp or flexo plate making.Exposure unit. Ideal for use with stampBag system can also be used with liquid resin by conventional way to make stamp and plate. Washout on top left, post exposure below dryer and anti-tack under water exposure to the side. 15 minutes to make a plate from start to finish totally.

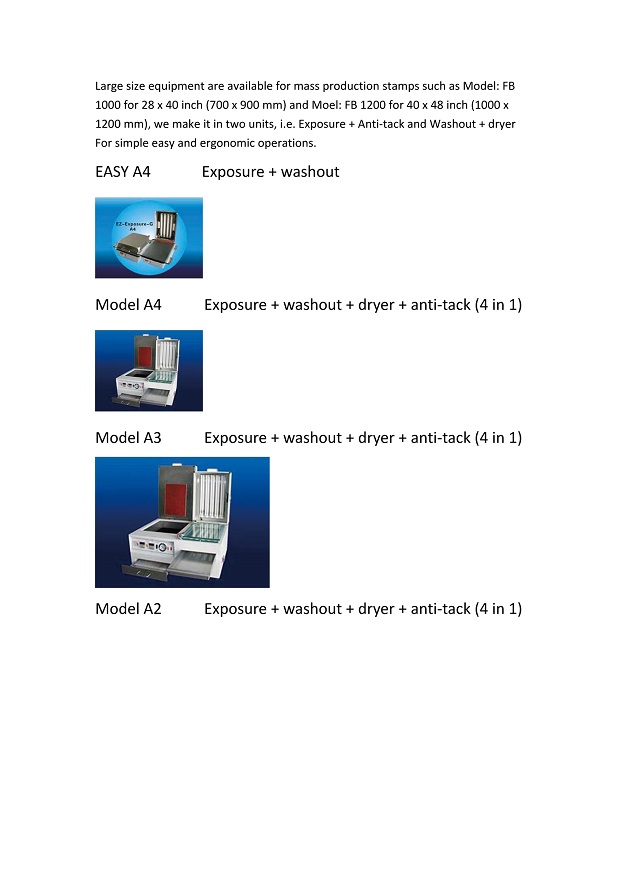

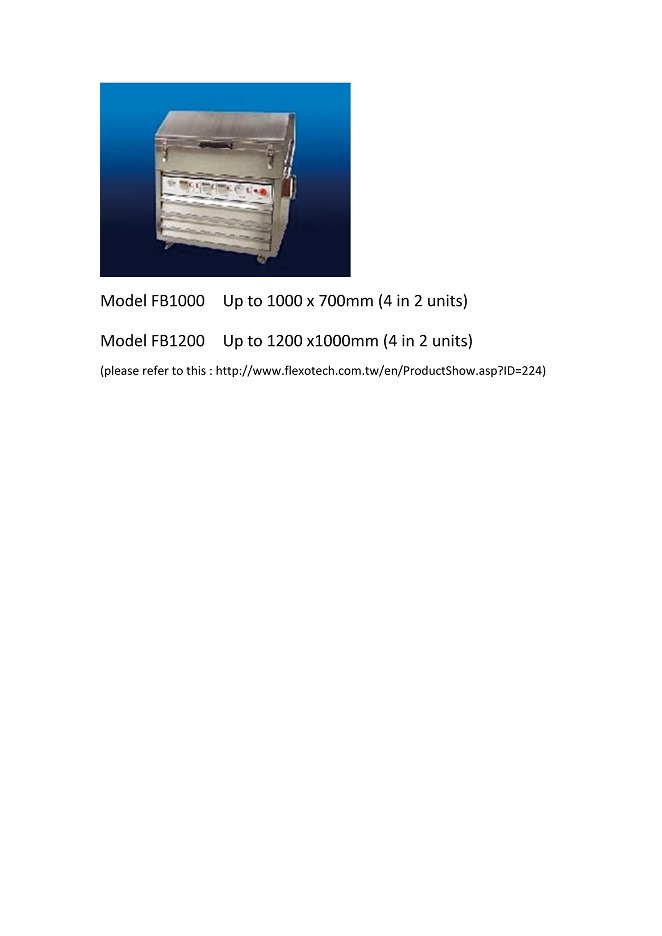

Large size equipment are available for mass production stamps such as Model: FB 1000 for 28 x 40 inch (700 x 900 mm) and Moel: FB 1200 for 40 x 48 inch (1000 x 1200 mm), we make it in two units, i.e. Exposure + Anti-tack and Washout + dryer

For simple easy and ergonomic operations.
